MIL STD 464 / MIL STD 188-125

LARGE OUTDOOR SYSTEMS (VERTICAL WAVE)

Benefit from +20 years of experience in developing outdoor bounded wave solutions, capable of conducting HEMP and NEMP survivability demonstration tests on large systems.

Proven performance

Automated test and report generation

+100 systems installed worldwide

Expertise in the refurbishment of your old systems

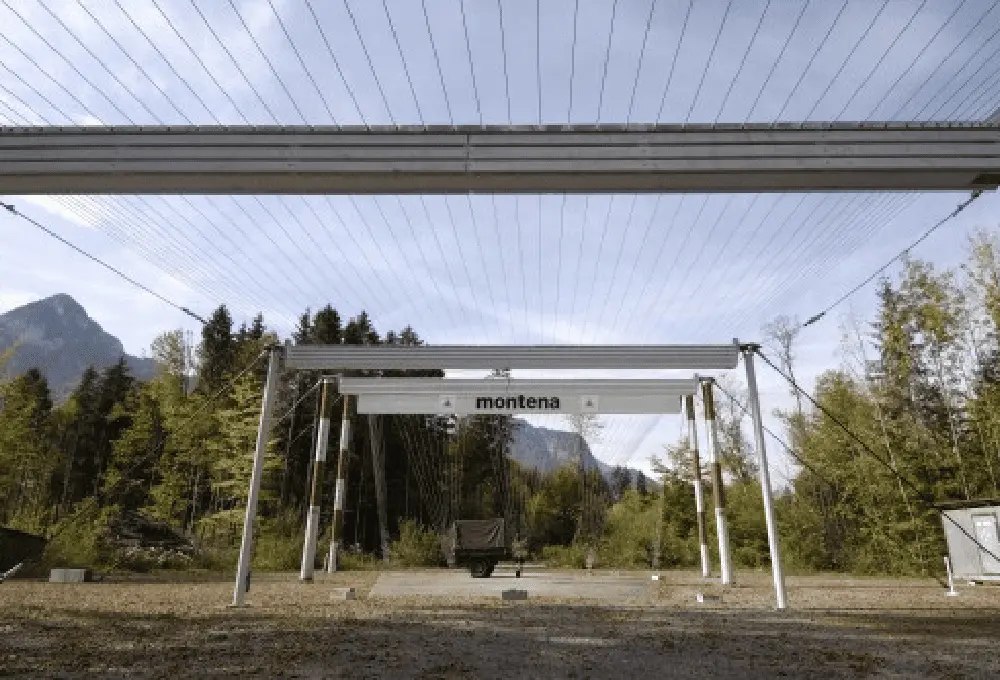

Montena has been designing, manufacturing and installing fixed simulators for outdoor installation for +20 years. Our bounded wave systems are capable of conducting HEMP and NEMP survivability demonstrations tests on large systems (according to MIL STD 464C, MIL 188-125-2 or IEC 61000-5-25).

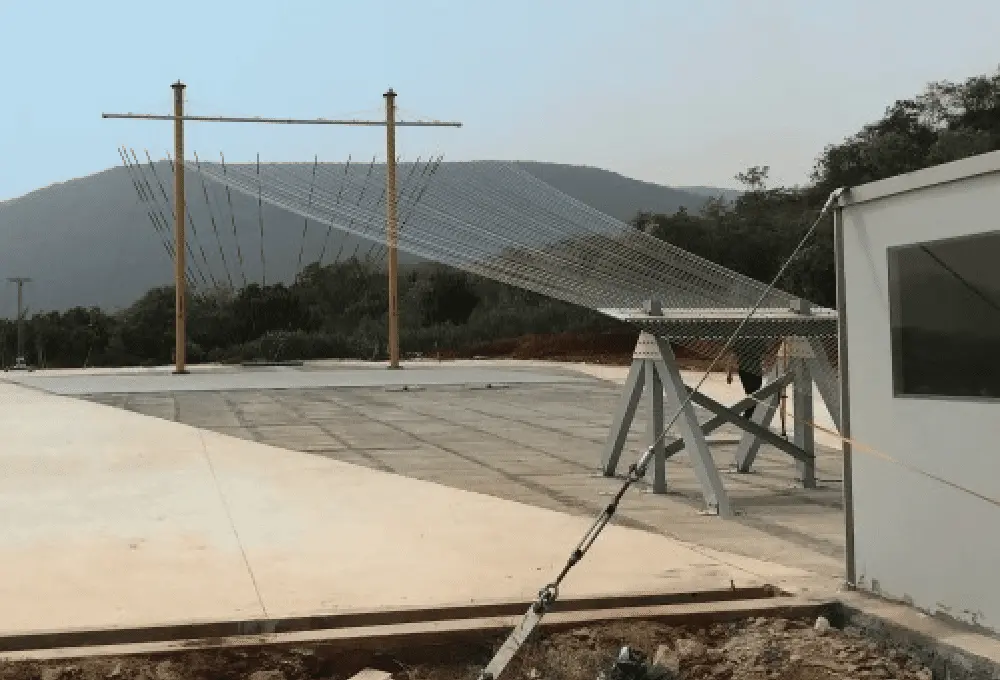

The high voltage pulse generator connected to the triangular transmission line generates the vertically polarized bounded wave electromagnetic pulse at an intensity of up to 50kV/m in the test volume. Various field sensors are used to verify the electric and magnetic field strengths in the test area. We also develop smaller transportable NEMP simulators for indoor or temporary outdoor installation (according to the MIL-STD-461 RS105).

DATASHEET & DOCUMENTATION

Access all technical data and resources about our NEMP Test Systems and EMC solutions.

Access detailed specifications

Make informed, confident choices

Contact us for further assistance

FAQ

What experience does Montena have with large outdoor bounded wave systems?

Montena has over 20 years of experience in designing, manufacturing, and installing fixed simulators for outdoor installation capable of conducting HEMP and NEMP survivability demonstration tests on large systems.

What standards do Montena’s large outdoor vertical wave systems comply with?

These systems operate in accordance with MIL STD 464C, MIL 188-125-2, or IEC 61000-5-25 standards for survivability testing.

How is the bounded wave electromagnetic pulse generated?

The high voltage pulse generator connected to the triangular transmission line generates the vertically polarized bounded wave electromagnetic pulse at an intensity of up to 50 kV/m in the test volume.

What sensors are used during tests?

Various field sensors are used to verify the electric and magnetic field strengths within the test area to ensure accurate measurements.

Does Montena provide portable NEMP simulators?

Yes, Montena also develops smaller transportable NEMP simulators suitable for indoor or temporary outdoor installations, compliant with MIL-STD-461 RS105.

Where can I find technical data and documentation for these systems?

All relevant technical data and documentation for Montena’s NEMP Test Systems and EMC solutions are accessible online via the datasheet and documentation resources.
